API6D Throuht  Conduit Gate Valve 150LB,Throuht  Conduit Slab Gate Valve
Price:
1,000.00
Detail

Main features: Slab gate valve is an efficient and reliable through conduit gate valve,

with two floating seats to provide a tight seal with the gate. Full bore through conduit design can eliminate flow turbulence. Pressure drop is no larger than through an equal length of pipe.


Design standard :API 6D

Product range :
1.Pressure range :CLASS    150Lb~2500Lb
2.Nominal diameter :   NPS        2~48″
3.Body material:Carbon steel, Stainless steel, duplex stainless steel, Alloy steel, Nickel alloy
4.End connection : RF   RTJ   BW
5.Mode of operation:Hand wheel, Gear box, Electric, Pneumatic, hydraulic device, Pneumatic-hydraulic device;

Product features:
1.Double block and bleed seat design;
2.Operating torque is smaller than normal gate valve;
3.Bidirectional seals, no limitation on the flow direction;
4.When valve is in full open position, seat surfaces are outside flow stream that always in full contact with gate that can protect seat surfaces, and suitable for pigging pipeline;
5.Non-rising stem design can be chosen;
6.Spring loaded packing can be chosen;
7.Low emission packing can be chosen according to ISO 15848 requirements;
8.Stem extended design can be chosen;
9.Normally open type or normally close type with through conduit design;
10.Non through conduit design is also available as per customer request

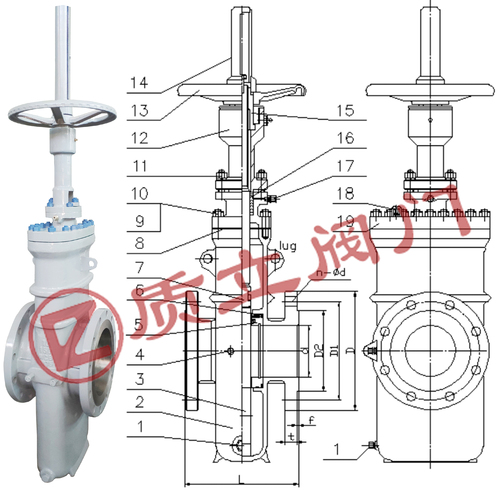

NO.

Part Name

material

NO.

Part Name

material

1

Drain Valve

AISI 1025+Zn

11Yoke BoltASTM A193 B7

2

Body

ASTM A216 WCB

12

Yoke

ASTM A216 WCB

3

Disc

A516 GR70+ENP /

A276 SS304

13

Hand wheelHT450

4

Oil Injector

AISI 1025+Zn

14

Indicating coverASTM A216 WCB

5

Seat Ring

A105/F304+RPTFE

15

Stem NutC95500

6

Seat ring

Viton

16

Stem PackingPTEF+Viton

7

Stem

F6A / ss304

17

Oil InjectorAISI 1025

8

Gasket

304+Graphite

18

Vent PlugAISI 1025
9BlotASTM A193 B719BonnetASTM A216 WCB

10

NutASTM A194 2H





API6D Throuht  Conduit Gate Valve


150LB主要尺寸

NPS

d

L

D

D1

D2

t

n-d

f

2"

50

178

150

120.7

92.1

19.5

4-19

2

2-1/2"

65

190

180

139.7

104.8

22.7

4-19

2

3"

80

203

190

152.4

127

24.3

4-19

2

4"

100

229

230

190.5

157.2

24.3

8-19

2

5"

125

254

255

216

185.7

24.3

8-22

2

6"

150

267

280

241.3

215.9

25.9

8-22

2

8"

201

292

345

298.5

269.9

29

8-22

2

10"

252

330

405

362

323.8

30.5

12-25

2

12"

303

356

485

431.8

381

32.2

12-25

2

14"

334

381

535

476.3

412.8

35.4

12-29

2

16"

385

406

595

540

569.9

37

16-29

2

18"

436

432

635

578

533.4

40.1

16-32

2

20"

487

457

700

635

584.2

43.3

20-32

2

24"

589

508

815

749.3

692.2

48

20-35

2

28"

684

610

927.1

863.6

800

71.4

28-35

2

32"

779

660

1060

978

914.4

81

28-41

2

36"

874

800

1168

1086

1022.4

90.4

32-41

2

40"

976

811

1289

1200

1124

90.4

36-41

2

48"

1166

1264

1511.3

1422.4

1359

108

44-41

2
